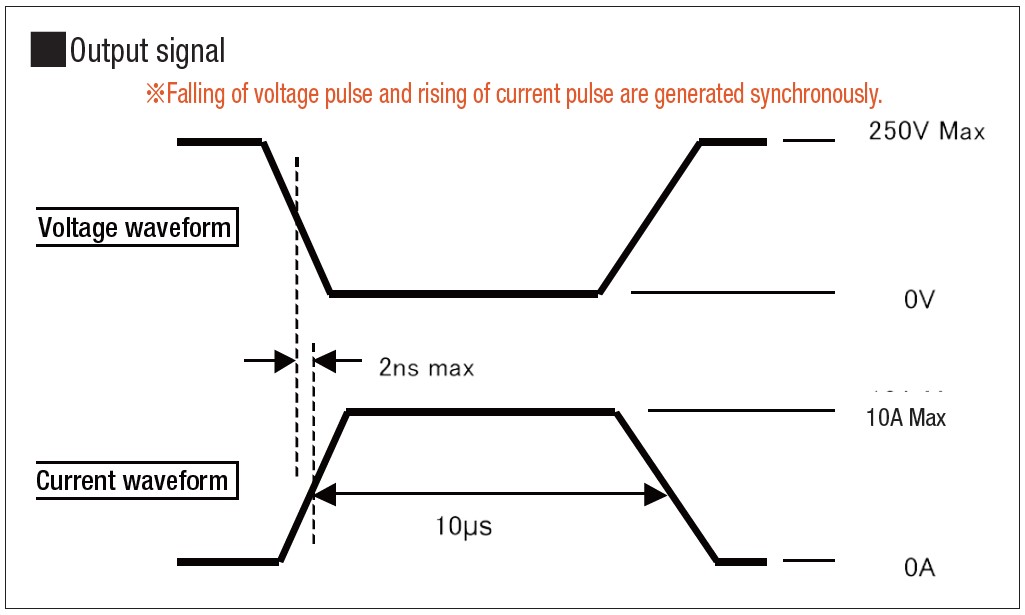

This device can simultaneously generate a phase-matched voltage pulse and current pulse of up to 250V/20A, so it is ideal for skew (delay time) correction of high voltage probes and high current probes used for inverter measurement.

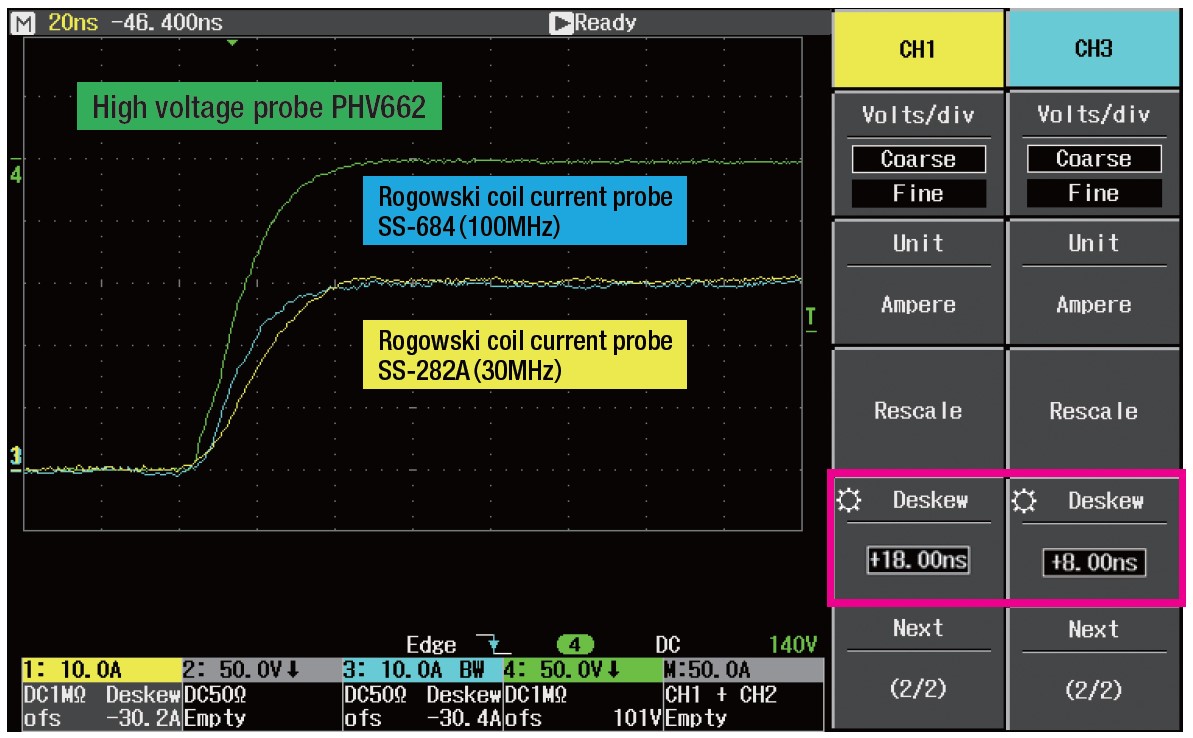

■Precise power measurement can be performed by accurately correcting the skew (delay time) of voltage probes and current probes. * For skew (delay time) correction, use a deskew function such as an oscilloscope.
Appearance

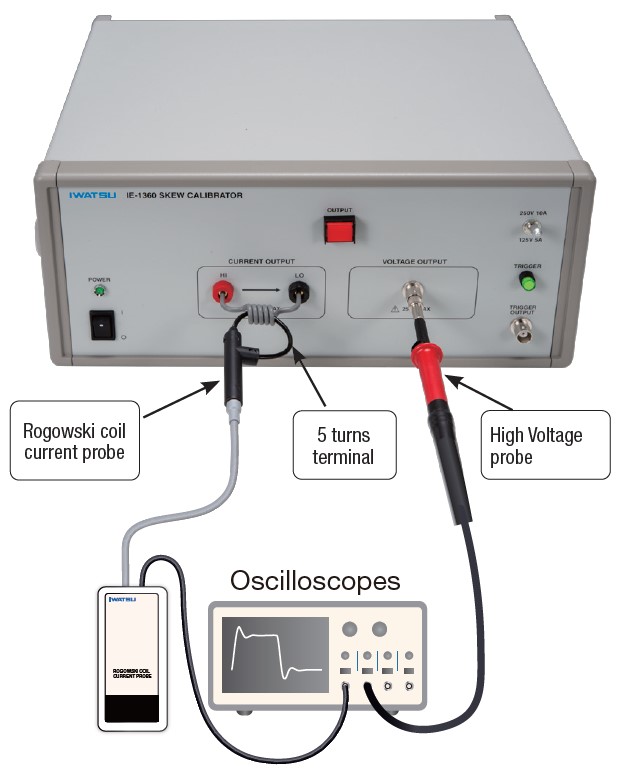

Application example
Specifications
Item | Description | ||
---|---|---|---|
Output waveform | A single pulse with a pulse width of about 10μs | ||
Generated signal range | 2 range switching | ||
Voltage output | Voltage | 250V | 125V |
Amplitude accuracy/output resistance | ±5%/approx. 25Ω | ||
Max load/Output terminal | 100kΩ or higher//12pF or lower/BNC connector (female) | ||
Current output | Current | 10A | 5A |
Amplitude accuracy | ± 5% | ||

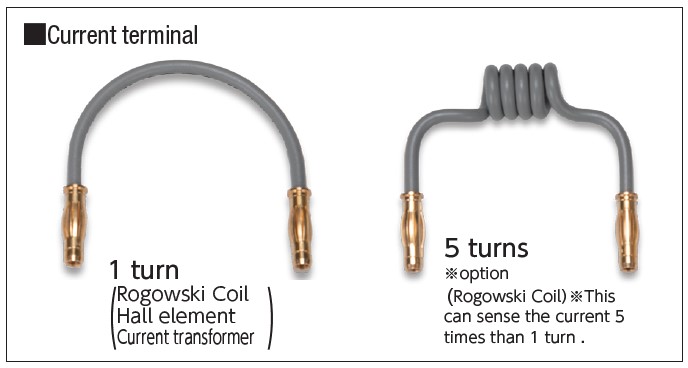

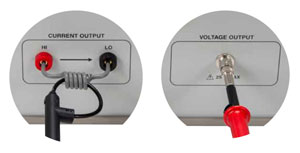

Output terminal/droop | 1 turn (accessory)/5 turns (option) Replaceable/1%/μs or less | ||
Waveform/Phase | Tr (current) | 25ns | 20ns |
Tf (voltage) | |||
Delay time difference | ± 2ns | ± 1.5ns | |
Notes | * Guaranteed value only for the rising part of the current and the falling part of the voltage. * Pulse generation in the case of the standard terminal shape |
||
(trigger/output interval) | 1 pulse occurrence/1 second or more by pressing the trigger button | ||
Trigger output | Trigger output 0 to 4V (rising edge) | ||
Power supply | 100VAC 20VA or less | ||
Performance warranty temperature range | +10ºC ~ +35ºC | ||
Dimensions (mm) | 320W × 160H × 270L (TBD) |
