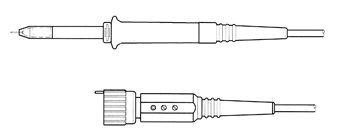

PHV66x/PHVS66x Appearance
AC rms：2.8kV
DC+AC pk：4kV
Impulse pk：6kV

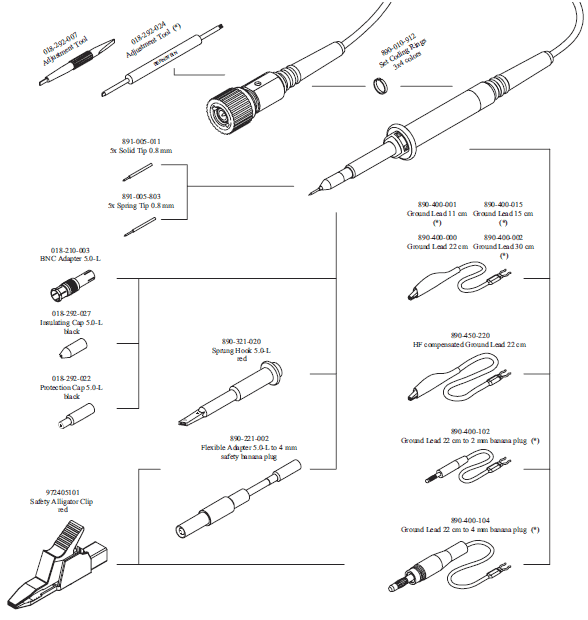

Accessories example
＜Attention＞Accessories may change due to changes in specifications.
Specifications
| Model name | Attenuation | Input RC | Bandwidth [MHz] |
Compliant capacitance [pF] |
Cable length [m] |
Maximum input voltage [kV] |
|||
|---|---|---|---|---|---|---|---|---|---|
| R [MΩ] |
C [pF] |
AC rms* |
VDC+ pkAC |
Impulse Peak** |
|||||
| PHV661-L PHV661-L RO |
100：1 (200：1 for PHV665-L/200 only) | 50 | 7.5 | 400 | 10～25 | 1.2 | 2.8 | 4 | 6 |
| PHV662-L PHV662-L RO |
300 | 2 | |||||||
| PHV662IL-RO*** | 5 | 400 | |||||||
| PHV663-L PHV663-L RO |
7.5 | 250 | 3 | ||||||
| PHV665-L PHV665-LRO PHV665-L/200 |
Please contact us | Please contact us | Please contact us | 5 | |||||
| PHVS662-L PHVS662-L RO |
1000：1 | 50 | 6 | 400 | 2 | ||||
| PHVS663-L PHVS663-L RO |
7 | 250 | 3 | ||||||
| PHVS665-L PHVS665-L RO |
8 | 175 | 5 | ||||||
"-RO" in the model name corresponds to ReadOut
* For AC 50/60Hz sine wave ** For pulse waveforms less than or equal to 1/10 of the reference period
*** PHV662IL-RO is the ideal probe for the characteristics of our oscilloscopes
Characteristic graph
Derating PHV 661-L ×100
