Compatible with Maximum Differential Operating Voltage 1.4kV (DC + AC peak)

Application example

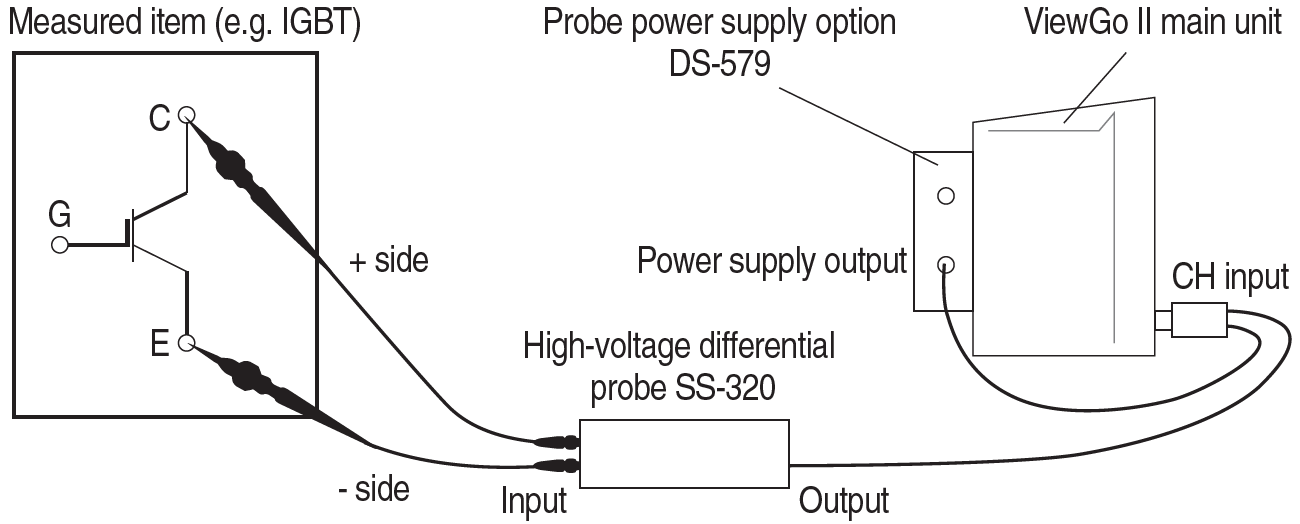

When ViewGoII DS-5600A Series power supply option is used

When power supply option is used

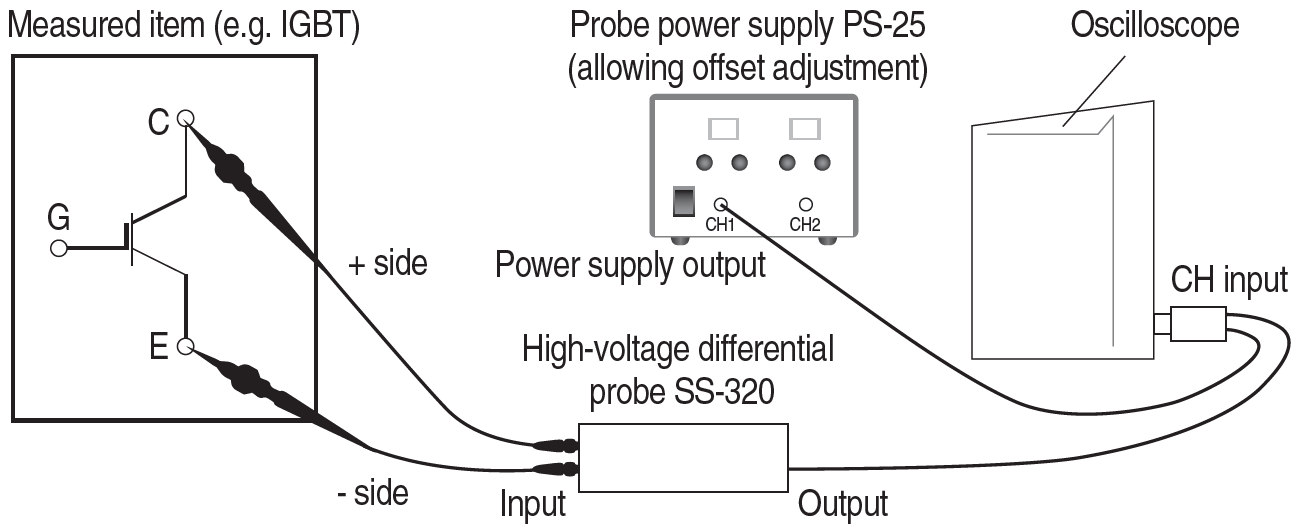

When external power supply is used

When external power supply is used

Accessory external dimensions

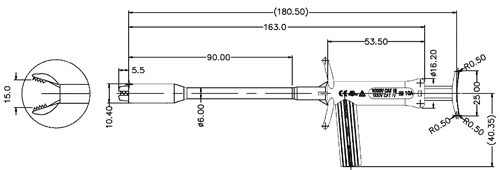

Crocodile clip (standard accessory)

Crocodile clip

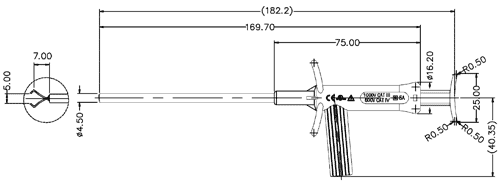

Plunger hook clip (standard accessory)

Plunger hook clip

Specifications

Order number SS-320
Frequency bandwidth DC to 100MHz (-3 dB) *See derating characteristics
Attenuation 50:1, 500:1
Accuracy ±2 %(20ºC ~ 30ºC)
* When the input impedance is connected to an oscilloscope of 1MΩ ±1%
DC CMRR -70dB* at 500VDC input voltage
AC CMRR -80 dB(50 Hz/60 Hz) / -50 dB(100 kHz) / -50 dB(1 MHz)
Transmission delay 12.5 ns (500:1, typical), 13.5 ns (50:1, typical)
Input R // C From each input to GND, 4MΩ or more // 7.0pF or less
Between inputs 8MΩ or more // 3.5pF or less
Maximum differential operating voltage ±1,400 V(DC+AC peak, 500:1), ±140 V(DC+AC peak, 50:1)
Maximum in-phase operating voltage ±1,400V (DC + AC peak), or ±1,000Vrms
Maximum non-destructive
(Differential mode, in-phase mode)
±1,500 V(DC+AC peak), 1,300 Vrms
Maximum output voltage range When connected to an oscilloscope of ±2.8V * 1MΩ ±1%
Output offset Adjustable with other devices to be combined
Connector output side/input side BNC model/Special 6-core connector
Full length 2,000 mm ±30 mm
Power cable length 1,000 mm ±20 mm
Input lead length 405 mm ±5 mm
Weight 450g or less
Warranty temperature range 0°C to +50°C (no condensation)
Operating temperature and humidity -10°C to +50°C (no condensation)/80% RH or less (at 40°C)
Accessories Crocodile clip (red, black) 1 each, plunger hook clip (red, black) 1 each, instruction manual
scrollable

Option

  • Dedicated power supply PS-25
  • Dedicated power supply DS-579 (ViewGoII dedicated option)

* Dedicated power supply is not included

Materials

Item File name
Manual English ss-320-e-v1.pdf


scrollable

Order information

Model number Product name Appearance

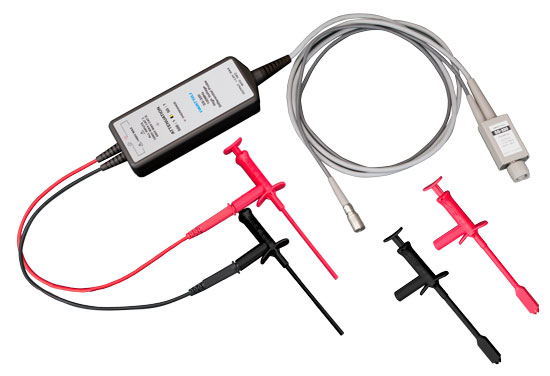

SS-320 High Voltage Differential Probe
