Voltage Probes (1kV or less)
IWATSU Oscilloscope Standard Probe

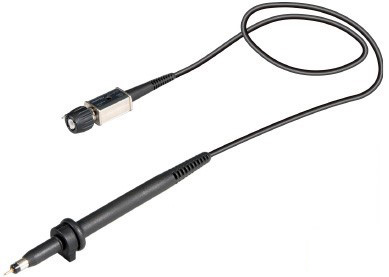

Voltage probe SS series

SS Series/Passive Single End Probe Specification

Model SS-0150R SS-0122 SS-0112 SS-0130R
Frequency bandwidth
(-3dB)		 1：1 － DC～6MHz －
10：1 DC～500MHz DC～100MHz DC～60MHz DC～200MHz
Attenuation 10：1 10：1 / 1：1 10：1
Accuracy ±2% (single probe)
Maximum input voltage 1：1 － 500V(DC+ACpk) －
10：1 600V(DC+ACpk) 600V(DC+ACpk) 600V(DC+ACpk)
RC 1：1 － 1MΩ // 150pF 1MΩ // 200pF －
10：1 10MΩ
12.5pF		 10MΩ±2%
14pF±2pF		 10MΩ±2%
22pF±3pF		 10MΩ±2%
12.5pF±2pF
Compliant input capacitance 14～25pF 10～32pF 10～45pF 18～35pF
Cable length 1.5m
Connector BNC type

Optional accessories

  • Arrow tip：1 pc
  • Ground lead (earth lead)：1 pc
  • Earth attachment：1 pc
  • IC test tip：1 pc
  • Mark band (color ring)：1 set
  • Screwdriver：1 pc

Probes Model Compatibility List

Probe model Type Compatible models
SS-0150R Analog

TS-8500, TS-8500P, TS-81000, TS-80600, SS-7847A, SS-7840H, SS-7840A, SS-7840, SS-7840P, SS-7830, SS-7825, SS-7825P
Digital

DS-5332, DS-5334, DS-5352, DS-5354 DS-5532, DS-5534, DS-5552, DS-5554, DS-5532A, DS-5534A, DS-5552A, DS-5554A, DS-5654, DS-5652, DS-5634, DS-5632, DS-5654A DS-5652A, DS-5634A, DS-5632A
SS-0122 Digital

DS-5110, DS-5106, DS-5110A, DS-5106A, DS-5110B, DS-5105B, DS-5106B, DS-5107B
SS-0112 Analog

SS-7605, SS-7604, SS-7603, SS-7602, SS-7804A, SS-7802, SS-7802A, SS-7805A
Digital

DS-5104, DS-5102, DS-5104A, DS-5102A, DS-5104B, DS-5102B, DS-8706, DS-8701, DS-8600, DS-8601A, DS-8605, DS-8605C , DS-6411, DS-6411C
SS-0130R Analog

SS-7821, SS-7821A, SS-7811, SS-7811A, SS-7810, SS-7810A, SS-7806
Digital

DS-8617, DS-9121, DS-9122, DS-8812, DS-8812P, DS-8814, DS-8814P, DS-8822, DS-8822P, DS-8824, DS-8824P, DS-5312, DS-5314, DS-5322, DS-5324 DS-5512, DS-5514, DS-5522, DS-5322, DS-5324, DS-5512A, DS-5514A, DS-5522A, DS-5524A, DS-5424, DS-5422, DS-5414, DS-5412, DS-5424A DS-5422A, DS-5414A, DS-5412A, DS-5624, DS-5622, DS-5614, DS-5612, DS-5624A, DS-5622A, DS-5614A, DS-5612A
