The TETRIS Active Probe can be contacted in parallel to the adjacent 2.54mm pitch pins. The housing of this probe is T-shaped, and probes can be stacked without limitation by stacking one after another. In this way, multiple measurements can be performed simultaneously.
■ High input impedance: 1MΩ, Low capacitance: 0.9pF
■ Replaceable tip spring tips
■ Can be contacted to adjacent 2.54mm pitch IC leads
■ Can be connected to any device with a 50Ω input
The TETRIS Active Probe is manufactured as an independent measurement system by a probe manufacturer for oscilloscopes.
Its compact size and convenient accessories simplify measurement operations.
It not only fits easily in small spaces, but can also contact with very small test points and vials.
■Frequency bandwidth DC to high input impedance at up to 2.5GHz
With an input resistance of 1MΩ and an input capacitance of 0.9pF, TETRIS is suitable for measuring all frequency ranges. All three models cover the bandwidth from DC to 2.5GHz

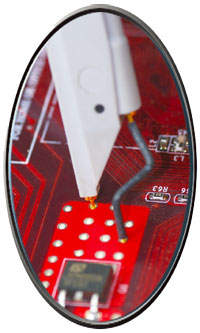

By using the installation plate and copper pad, the connection to GND can be shortened as much as possible for measurements close to the true value on the IC.

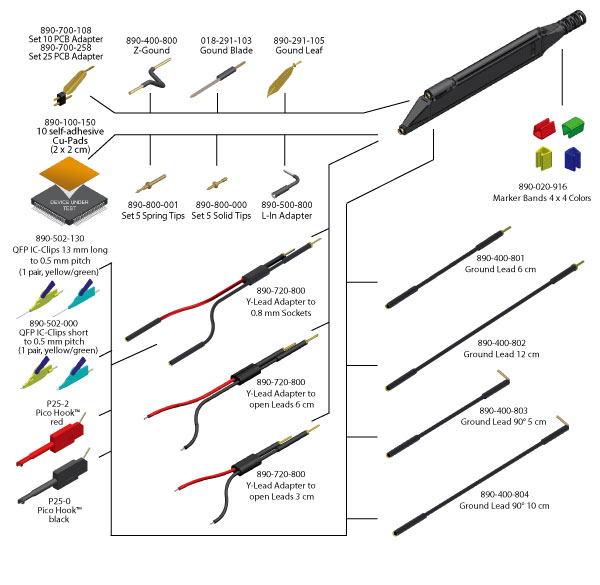

Accessory configuration diagram

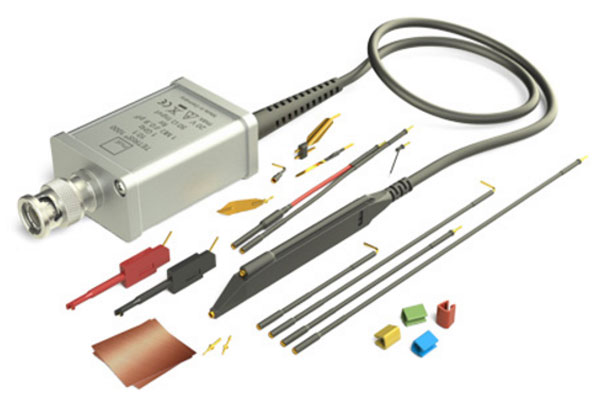

Examples of accessories (Accessories may change due to changes in specifications)■ Probe
■ Spring Tip
■ Solid Tip
■ L-In Adapter
■ Ground Blade
■ 2 self-adhesive Cu-pads
■ Ground Lead 6 cm
■ Ground Lead 12 cm
■ Ground Lead 90° 5 cm
■ Ground Lead 90° 10 cm
■ Y-lead adapter to 0.8 mm sockets
■ Picohook™ black
■ Picohook™ red
■ Marker Bands 4 Colors
■ Z-Ground
■ PCB Adapter
■ Ground Leaf
■ Power Supply
Specifications
| Order number | TETRIS 1000 | TETRIS 1500 | TETRIS 2500 |
|---|---|---|---|
| Attenuation | 10:1 | ||
| Input impedance | 1 MΩ // 0.9pF | ||
| Measurement equipment side input impedance | 50Ω | ||
| Probe frequency bandwidth | 1.0 GHz | 1.5 GHz | 2.5 GHz |
| System frequency bandwidth | 600MHz | 1GHz | 2GHz |
| Input dynamic range | ±8V | ||
| Maximum input voltage | 20V | ||
| Cable length | 1.3m | ||
| Power supply | AC adapter (standard) | ||
Materials
| Item | File name | |
|---|---|---|
| TETRIS 1000/1500 Datasheet | English | 881-000-000_Datasheet_Tetris1000_en.pdf |
| TETRIS 1000 Manual | English | 881-000-000_Manual_Tetris1000_en.pdf |
| TETRIS 1500 Manual | English | 881-000-000_Manual_Tetris1500_en.pdf |
| TETRIS 2500 Manual | English | 882-500-000_Manual_Tetris2500_en.pdf |
Order information
| Order number | Probe frequency bandwidth | Appearance |
|---|---|---|
| TETRIS 1000 (881-000-INT) |
1.0GHz |  |
| TETRIS 1500 (881-500-INT) |
1.5GHz | |
| TETRIS 2500 (882-500-INT) |
2.5GHz |
