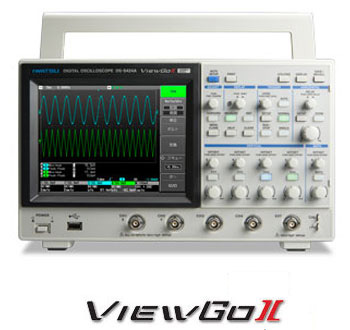

Digital Oscilloscope "ViewGo II" DS-5400A Series
Beautiful waveforms, analog finish Made in Japan at affordable prices- Bandwidth 100, 200MHz
- 2GS/s 4, 2 Channel
- 500k points
Added functionality from the DS-5400
- 2GS/s sampling on all models
- Supports PNG transparency attributes for hard copy output
- Supports averaging effective count display
DS-5400A Series Function Introduction
2GS/s compatible with 100MHz devices
Compatible with all models 2GS/s. The maximum sampling speed can be increased from 1GS/s to 2Gs/s by 2-channel coupling.
DS-5424A/5414A for 4-channel models
Usual：4 channels 1GS/s → When 2 channels are combined：2 channels 2GS/s
DS-5422A/5412A for 2-channel models
Usual：2 channels 1GS/s → When 2 channels are combined：1 channel 2GS/s

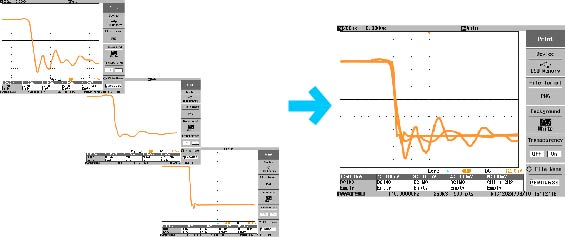

The PNG format of the image data storage format is compatible with transparent type
Supports the transparent attributes of PNG, you can superimpose waveforms when creating documents.

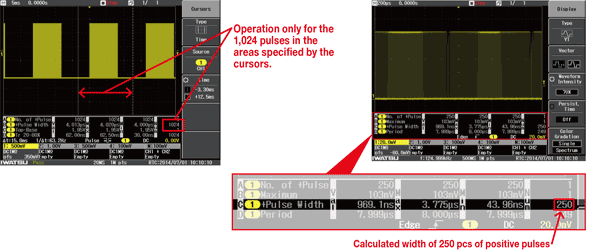

Full cycle parameter measurement*
Automatically measures the waveform of the captured full cycle (time axis). A large amount of data can be captured in the long memory to determine the maximum and minimum variation widths. You can also analyze the interval that is pinched by the cursor. It can be used for measuring the smoothness of the rotation of a motor, the timing error of a mechatronics device, the fluctuation due to the load of a rotating device, the rotation fluctuation of a rotary encoder, etc. * The waveform parameter of the vertical axis (voltage axis) displays the measured value once per sweep.

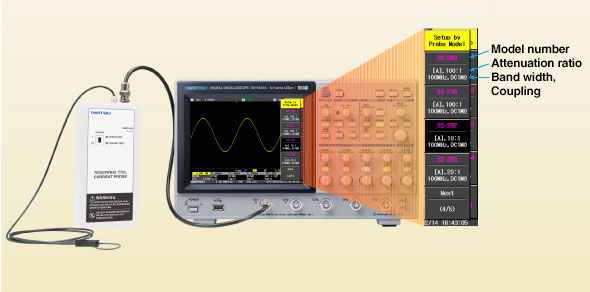

Probe selection function
When you select a model of an IWATSU ELECTRIC probe, the attenuation ratio and coupling are set automatically. The model number, vertical range bandwidth, and input coupling are displayed.

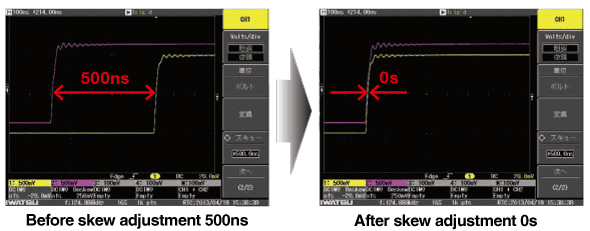

CH-to-CH skew adjustment function

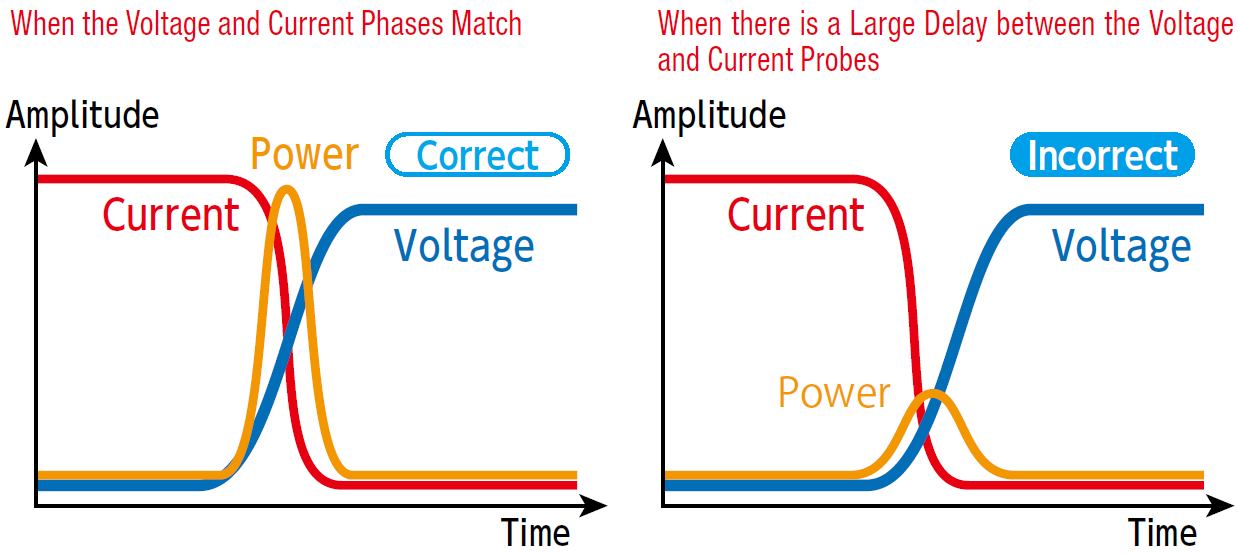

The skew can be adjusted up to 500ns.*For example, the phase adjustment between the current probe and the voltage probe allows for more accurate power waveform operations. * When the horizontal axis is set to skew priority (there is a limit to the number of waveforms in the replay function).
Clear sweep function
You can reset the measured data such as replay waveform, averaging, persistence, automatic measurement of waveform parameters, pass/fail judgment, and logging.
