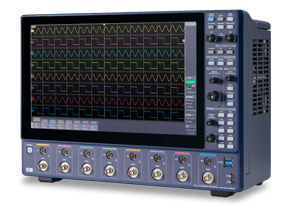

Digital Oscilloscope DS-8000 Series
High resolution oscilloscope

  • Large screen 15.6-inchFULL HD
  • Intuitive operation Touch panel & button/knob & mouse
  • Up to 8 CH
  • High resolution 12 bits (equivalent to 16 bits in high resolution mode)
  • Maximum memory length of 120M points as standard
  • High-speed data transfer 15 times faster than before

The DS-8000 Series accurately displays the measured signal with a maximum frequency bandwidth of 1GHz, a maximum number of channels of 8 CH, a sampling speed of 5 GS/s (when the channels are coupled), and a vertical resolution of 12 bits. High-speed start-up up to 4 times faster than competitor products and a 15.6-inch FULL HD touch panel greatly improves measurement efficiency.

Catalog
Repair/Calibration
Inquiries
General Specifications
Maximum frequency
: Up to 1GHz
Memory length
: Up to 120M points
Number of analog channels
: 4 or 8
Vertical resolution
: 12-bit
Application examples
  • Power device switching (ON voltage, etc.) observation
  • Lightning surge waveform observation
  • Waveform observation of voltage, current, sensing and ECU signals of automotive inverters
  • Behavior at the time of power-on of the device, confirmation of the stability of the power converter, observation of changes in waveform distortion such as encoder pulses

Large screen and intuitive operation

You can change the settings by sensory operation just by touching and comfortable operation with buttons and knobs. The high visibility Full HD display shows every detail of the waveform.

High-speed start-up

After the power is turned on, the device starts up quickly (about 30 seconds, 4x faster than competitor products), so you can start measuring immediately when you want to use the device.

High resolution & low noise

Waveform display is possible by using ADC with high resolution of 12 bits at all times (up to 16 bits in high resolution mode).
Ideal for automotive, component, and semiconductor design, production, and quality assurance departments.

　
　

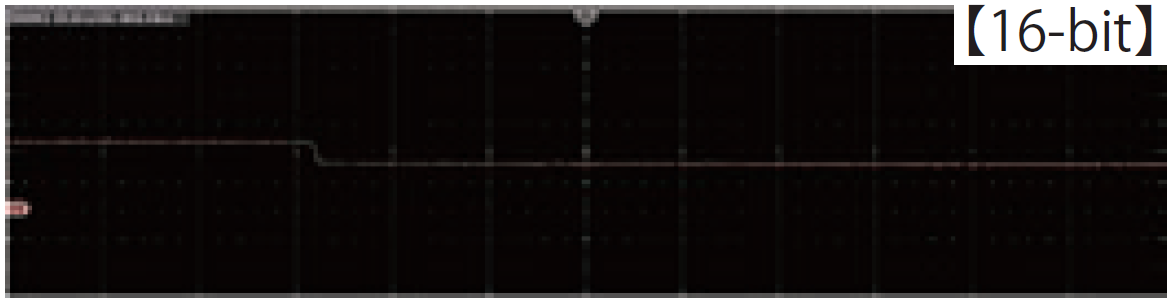

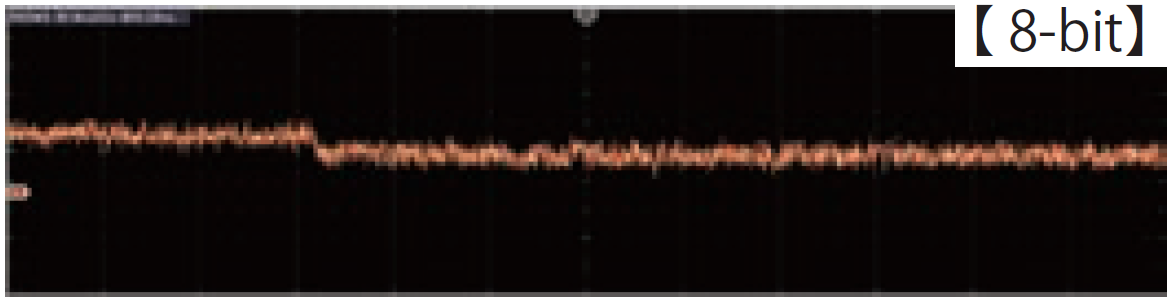

Large noises re observed when enlarged with 8-bit due to effect of low resolution. 16-bit equivalent resolution showws more details of enlarged waveform.

Broadband & up to 8 channels

Supports a wide range of applications with a maximum frequency band of 1GHz and a maximum of 8 channels.

DS-8000 Main Specifications
1GHz model 500MHz model 350MHz model
Model DS-8108 DS-8104
Number of analog channels 8 4
Frequency bandwidth 1GHz
Input impedance 50Ω±1.5% / 1MΩ±1%//16pF±2pF
Input coupling GND, DC1MΩ, AC1MΩ, 50Ω
Input sensitivity 1mV~1V/div(50Ω, 1-2-5 sequence)
1mV~10V/div(1MΩ, 1-2-5 sequence)
ADC resolution Real time: 12 bits, high resolution mode: up to 16 bits
Horizontal axis sweep range 200ps/div~50s/div
Timebase accuracy 10ppm or less
Acquisition memory length 60M points (when all channels are used)/120M points (when channels are coupled)
Sample rate 5GS/s @12 bits (when channels are coupled)
2.5GS/s @12 bits (when all channels are used)
Trigger Edge, Edge OR, Edge Alternate, Pulse Width, Period, Pattern,
Serial Trigger (UART, I2C, SPI)
Trigger coupling AC, DC, HF Rej, LF Rej, Noise Rej
External trigger
(Optional DS-601)		 Input resistance: Approx. 10kΩ/operating input range:0~+5v
Trigger threshold: +0.5V, +1.2V/operating frequency: 100MHz max (at external 50Ω termination)
Calculation processing Addition, Subtraction, Multiplication, Division, Integration, Differentiation, Absolute Value, Inversion, FFT
Automatic measurement Voltage [12 items] Maximum, Minimum, Peak-Peak, RMS Value, Cyclic RMS Value, Average Value, Cyclic Average Value, Top, Base, Top-Base, + Overshoot, - Overshoot
Time [12 items] Transition Time, Rising (20-80%), Rising and Falling (80-20%), Rising (10-90%), Rising and Falling (90-10%), Frequency, Period, Number of Positive Pulses, Number of Negative Pulses, Positive Pulse Width, Negative Pulse Width, Duty Ratio
Other [9 items] Differentiation, Integration, Integration (Absolute Value), Integration (Positive Value), Integration (Negative Value), Skew (%), Skew (Level), Phase (%), Phase (Level)
Frequency counter Number of display digits: 6 digits, frequency bandwidth: 4Hz to 1GHz (the upper limit is the frequency bandwidth of each model)
Measurement accuracy:10ppm
Display 15.6 inch, Full-HD (1920 × 1080), capacitive touchscreen
Remote interface Ethernet(10/100/1000Base-T), USB3.0
Power supply 100~240V AC, 50/60Hz
Power consumption 360VA(325W)
External dimensions 445 (W) x 324.6 (H) x 200 (D) mm
Weight Approx. 11.5kg
Accessories Panel cover, power cord, 4 passive probes, instruction manual (CD), accessory storage case
Option DS-821 switching analysis software
DS-601 external trigger input function
Model DS-8058 DS-8054
Number of analog channels 8 4
Frequency bandwidth 500MHz
Input impedance 50Ω±1.5% / 1MΩ±1%//16pF±2pF
Input coupling GND, DC1MΩ, AC1MΩ, 50Ω
Input sensitivity 1mV~1V/div(50Ω, 1-2-5 sequence)
1mV~10V/div(1MΩ, 1-2-5 sequence)
ADC resolution Real time: 12 bits, high resolution mode: up to 16 bits
Horizontal axis sweep range 500ps/div~50s/div
Timebase accuracy 10ppm or less
Acquisition memory length 60M points (when all channels are used)/120M points (when channels are coupled)
Sample rate 5GS/s @12 bits (when channels are coupled)
2.5GS/s @12 bits (when all channels are used)
Trigger Edge, Edge OR, Edge Alternate, Pulse Width, Period, Pattern,
Serial Trigger (UART, I2C, SPI)
Trigger coupling AC, DC, HF Rej, LF Rej, Noise Rej
External trigger
(Optional DS-601)		 Input resistance: Approx. 10kΩ/operating input range:0~+5v
Trigger threshold: +0.5V, +1.2V/operating frequency: 100MHz max (at external 50Ω termination)
Calculation processing Addition, Subtraction, Multiplication, Division, Integration, Differentiation, Absolute Value, Inversion, FFT
Automatic measurement Voltage [12 items] Maximum, Minimum, Peak-Peak, RMS Value, Cyclic RMS Value, Average Value, Cyclic Average Value, Top, Base, Top-Base, + Overshoot, - Overshoot
Time [12 items] Transition Time, Rising (20-80%), Rising and Falling (80-20%), Rising (10-90%), Rising and Falling (90-10%), Frequency, Period, Number of Positive Pulses, Number of Negative Pulses, Positive Pulse Width, Negative Pulse Width, Duty Ratio
Other [9 items] Differentiation, Integration, Integration (Absolute Value), Integration (Positive Value), Integration (Negative Value), Skew (%), Skew (Level), Phase (%), Phase (Level)
Frequency counter Number of display digits: 6 digits, frequency bandwidth: 4Hz to 1GHz (the upper limit is the frequency bandwidth of each model)
Measurement accuracy:10ppm
Display 15.6 inch, Full-HD (1920 × 1080), capacitive touchscreen
Remote interface Ethernet(10/100/1000Base-T), USB3.0
Power supply 100~240V AC, 50/60Hz
Power consumption 360VA(325W)
External dimensions 445 (W) x 324.6 (H) x 200 (D) mm
Weight Approx. 11.5kg
Accessories Panel cover, power cord, 4 passive probes, instruction manual (CD), accessory storage case
Option DS-821 switching analysis software
DS-601 external trigger input function
Model DS-8038 DS-8034
Number of analog channels 8 4
Frequency bandwidth 350MHz
Input impedance 50Ω±1.5% / 1MΩ±1%//16pF±2pF
Input coupling GND, DC1MΩ, AC1MΩ, 50Ω
Input sensitivity 1mV~1V/div(50Ω, 1-2-5 sequence)
1mV~10V/div(1MΩ, 1-2-5 sequence)
ADC resolution Real time: 12 bits, high resolution mode: up to 16 bits
Horizontal axis sweep range 500ps/div~50s/div
Timebase accuracy 10ppm or less
Acquisition memory length 60M points (when all channels are used)/120M points (when channels are coupled)
Sample rate 5GS/s @12 bits (when channels are coupled)
2.5GS/s @12 bits (when all channels are used)
Trigger Edge, Edge OR, Edge Alternate, Pulse Width, Period, Pattern,
Serial Trigger (UART, I2C, SPI)
Trigger coupling AC, DC, HF Rej, LF Rej, Noise Rej
External trigger
(Optional DS-601)		 Input resistance: Approx. 10kΩ/operating input range:0~+5v
Trigger threshold: +0.5V, +1.2V/operating frequency: 100MHz max (at external 50Ω termination)
Calculation processing Addition, Subtraction, Multiplication, Division, Integration, Differentiation, Absolute Value, Inversion, FFT
Automatic measurement Voltage [12 items] Maximum, Minimum, Peak-Peak, RMS Value, Cyclic RMS Value, Average Value, Cyclic Average Value, Top, Base, Top-Base, + Overshoot, - Overshoot
Time [12 items] Transition Time, Rising (20-80%), Rising and Falling (80-20%), Rising (10-90%), Rising and Falling (90-10%), Frequency, Period, Number of Positive Pulses, Number of Negative Pulses, Positive Pulse Width, Negative Pulse Width, Duty Ratio
Other [9 items] Differentiation, Integration, Integration (Absolute Value), Integration (Positive Value), Integration (Negative Value), Skew (%), Skew (Level), Phase (%), Phase (Level)
Frequency counter Number of display digits: 6 digits, frequency bandwidth: 4Hz to 1GHz (the upper limit is the frequency bandwidth of each model)
Measurement accuracy:10ppm
Display 15.6 inch, Full-HD (1920 × 1080), capacitive touchscreen
Remote interface Ethernet(10/100/1000Base-T), USB3.0
Power supply 100~240V AC, 50/60Hz
Power consumption 360VA(325W)
External dimensions 445 (W) x 324.6 (H) x 200 (D) mm
Weight Approx. 11.5kg
Accessories Panel cover, power cord, 4 passive probes, instruction manual (CD), accessory storage case
Option DS-821 switching analysis software
DS-601 external trigger input function
