Various interfaces and options

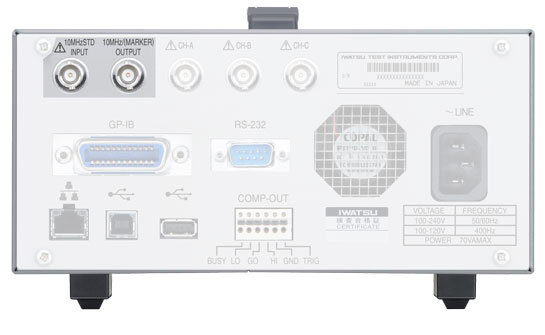

10MHz STD INPUT
A terminal that inputs a more stable 10MHz reference frequency from the outside. In the SYSTEM menu, when RefClk: SOUR = EXT is set, the internal reference oscillator is detached and the measurement is performed at a frequency of 10MHz of the external reference oscillator.

10MHz/( MARKER) OUTPUT
A terminal that outputs an internal 10MHz reference frequency or marker signal. Outputs an internal reference signal of 10MHz.

Digital I/O interface
A terminal that outputs an internal 10MHz reference frequency or marker signal. Outputs an internal reference signal of 10MHz.

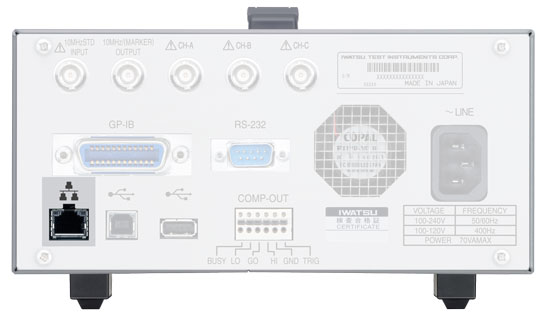

LAN interface
A connection terminal for the LAN interface It can be connected to a PC, etc. and can be remotely controlled from the outside.

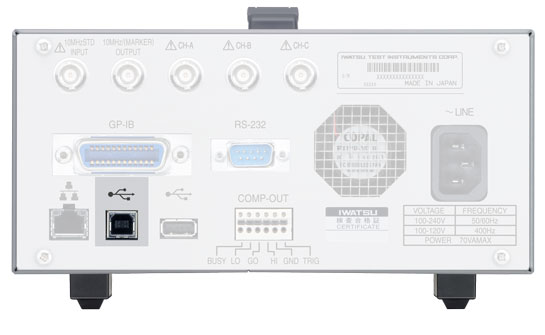

USB (for remote control) interface
A connection terminal for the USB interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.

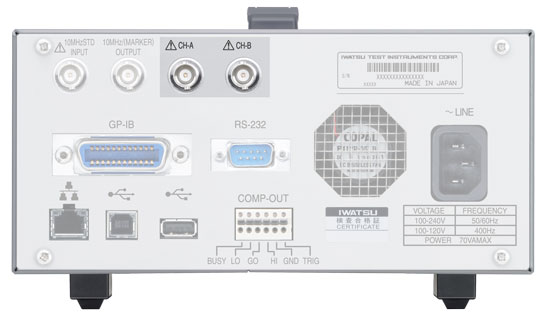

SC-709 (option)
CH-A/CH-B rear input for SC-7215A/7215 only
When you want to input signals from the rear, such as when you mount this product on the rack, change the CH-A/B input terminal to the rear.

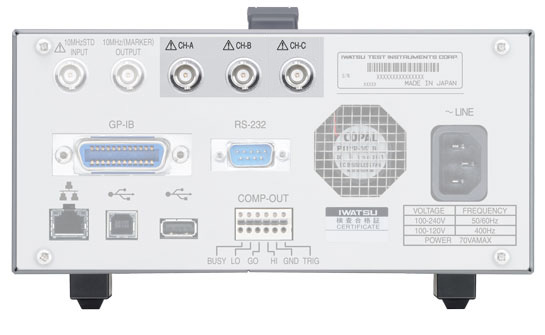

SC-710 (option)
CH-A/CH-C rear input for SC-7217A/7217 only
When you want to input signals from the rear, such as when you mount this product on the rack, change the CH-A/B/C input terminal to the rear.

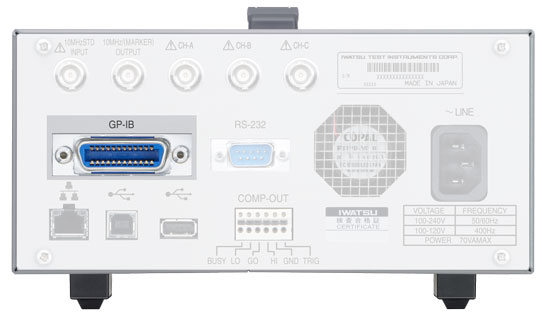

SC-711 (option)
GPIB interface
A connection terminal for the GPIB interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.

SC-713 (option)
USB host (for memory connection) interface
A connection terminal for USB memory. Measurement data can be saved to a USB memory device and panel setup can be saved/called to a USB memory device.

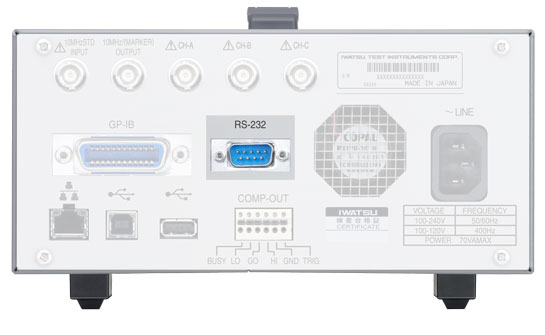

SC-714 (option)
RS-232 interface
A connection terminal for the RS-232 interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.
