Digital Multimeters VOAC7502
Equipped with a new display that makes further use of the judgment function- 5 ½ -digit display
- High-resolution 4.3-inch (109mm) LCD monitor
- Achieves up to 30k sampling/s
Easy-to-read large screen
High-resolution LCD monitor 4.3-inch 109mm
Uses a high-resolution liquid crystal display made in Japan. It is bright and has a wide viewing angle, and you can appreciate how good it is the more you use it. You can choose from two types of numeric fonts, normal (Gothic) and seven segments. In addition, you can select the background color from two modes (white or black).
Real-time value + analog meter
Arc scale meter + real-time value
Real-time value + maximum, minimum, average
Real-time value (ACV + frequency) + analog meter
Real-time value + LIMIT judgment
Real-time value + analog meter display + LIMIT judgment
Trend + analog meter display + LIMIT judgment
Histogram display + LIMIT judgment
Realization of various analytical display combinations without using a PC
The primary display has multiple displays, such as numerical displays, trend charts, histogram charts, and arc scale meters. For each primary display, there are also many secondary displays, so various screen combinations can be selected according to measurement needs.
A new display that makes further use of the judgment function
The large display has been made easier to see.
You can also see the display from a long distance. The device is popular because adjustment work is easy and quick.
Unique needle display. Analog changes are simulated in digital.
In addition to being useful for judging approximations, it can be used in a variety of ways in conjunction with the judgment function.
The color of the needle changes when the judgment criterion is exceeded.

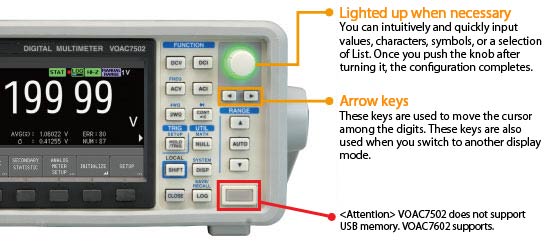

Easy to use
Quick Launch
The measurement can be started immediately by setting the setup information when the power is turned on.
Large capacity 100k readings logging memory
With the large memory, you can retrieve more than 24 hours of 1-second data with a timestamp.
It is also always logging, so you will not forget to save data.
