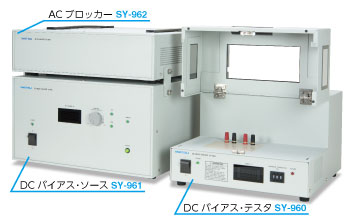

DC偏压测试仪 | B-H分析仪 | 电子测量设备／电子元件

轻松且精准地自动测量功率电感器等的DC偏压特性

最大DC偏压: ：　30A
最大脉动: ：　±6A
测量频率(正弦波): ：　10kHz～3MHz
测量频率(方形波): ：　10kHz～1MHz
　　(Duty10%～90%)

SMD功率电感器

环形线圈

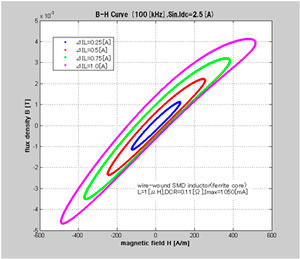

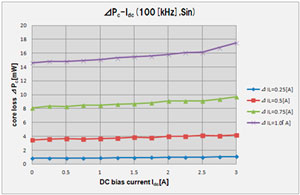

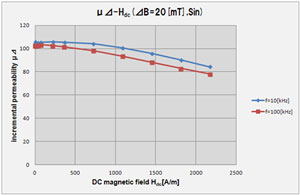

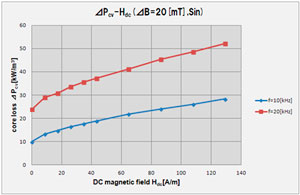

测量方形波(流入试样的电流为三角波形=模拟斩波器)、将直流叠加于正弦波的磁力特性

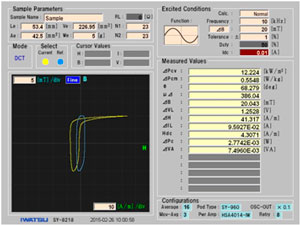

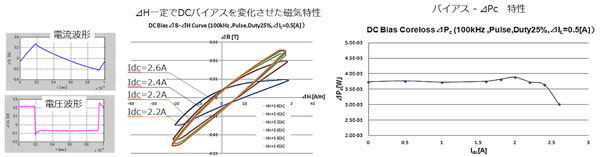

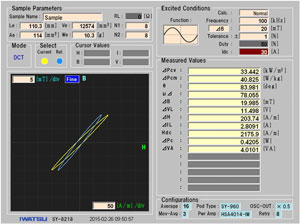

芯片电感器的测量示例(斩波器励磁)

在实际电路上直流磁场和交流磁场大多会被印加于磁性元件、测量因DC偏移而发生变化的磁力特性至关重要。

ferrite
L=1.0µH

Fe-Based amorphous
L=311µH

iron powder
L=8.4µH

DC偏压测试仪是SY-8218及SY-8219的专用选配件、不可在其他设备上使用。
出厂时需与B-H分析仪主机执行调整。
如果已有主机(SY-8218/8219)、需由本公司工厂回收后执行调整。
