根据类型、用途、功能进行选择

根据根据类型进行选择

根据允许电流进行选择

根据电流灵敏度进行选择

根据频带进行选择

根据形状/用途进行选择

根据厂商进行选择

高it积电流互感器 PMK公司 Lilco CT系列

类型│电流互感器(CT)│AC专用│
允许电流│7, 12, 14, 20, 33Arms│50, 60Arms│100, 200Arms│500Arms│
电流灵敏度│1V/A│500m, 200m, 100mV/A│
频率带宽│2, 5MHz│10, 20, 25MHz│30, 40MHz│60MHz│
形状/用途│馈通型(Φ58mm, 13.4mm)│无源型(无需电源)(CT)│
制造商│PMK公司制│

型号：Lilco 58系列／Lilco 13系列
标准价格(未含税)：请连系我们。

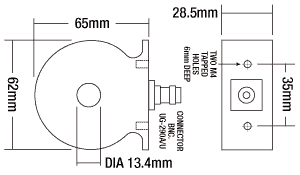

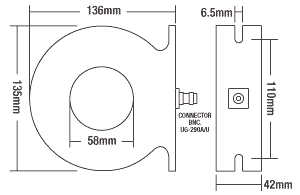

外形尺寸：Lilco 58系列（H135×W136×D42mm）／Lilco 13系列（H62×W65×D28.5mm）

Lilco 58、89系列

Order number	Output [V/A]	RECTANGULAR PULSE				SINEWAVE		Ipeak/f [A/Hz]	DC sat. Current Isat [A]	Max rms Current Irms [A]	Peak Current Ipeak [A]
		Droop [%/ms]	Rise time [ns]	I-t capability		-3dB Bandwidth
		Droop [%/ms]	Rise time [ns]	No bias [mA s]	With bias [mA s]	lf [Hz]	hf [MHz]
58EH010	0.01	0.32	80	13000	24000	0.5	5	85	55	400	20000
58MH010	0.01	0.025	80	13000	24000	0.04	5	85	2	400	25000
58E0020	0.02	0.5	200	12000	20000	0.8	2	70	55	500	20000
58M0020	0.02	0.04	200	12000	20000	0.06	2	70	2	500	20000
58E0050	0.05	1.57	80	3400	6000	2.5	5	20	55	200	10000
58M0050	0.05	0.1	80	3400	6000	0.15	5	20	2	200	10000
58E0100	0.1	6.3	40	1000	1800	10	10	6	55	100	5000
58EH100	0.1	12.6	20	400	700	20	20	2	55	100	2500
58M0100	0.1	0.32	40	1000	1800	0.5	10	6	2	100	5000
58MH100	0.1	0.63	20	400	700	1	20	2	2	100	2500
58E0200	0.2	25	20	200	360	40	20	1	55	50	2500
58M0200	0.2	2.5	20	200	360	4	20	1	2	50	2500
58M0500	0.5	9.4	20	40	70	15	20	0.2	2	20	1000
58M1000	1	25	14	10	18	40	30	0.06	2	12	500
89M0100	0.1	0.315	40	10	2600	0.5	10	9	5	100	5000

Lilco 13系列

Order number	Output [V/A]	RECTANGULAR PULSE				SINEWAVE		Ipeak/f [A/Hz]	DC sat. Current Isat [A]	Max rms Current Irms [A]	Peak Current Ipeak [A]
		Droop [%/ms]	Rise time [ns]	I-t capability		-3dB Bandwidth
		Droop [%/ms]	Rise time [ns]	No bias [mA s]	With bias [mA s]	lf [Hz]	hf [MHz]
13E0050	0.05	3.3	40	660	1200	5.3	10	4.1	22	100	10000
13G0050	0.05	0.32	40	1200	2200	0.5	10	8	3	100	10000
13W0050	0.05	0.06	40	1200	2200	0.1	10	3	0.25	100	10000
13E0100	0.1	10	16	220	400	16	25	1.4	22	60	5000
13G0100	0.1	1	16	400	700	1.6	25	2.5	3	60	5000
13W0100	0.1	0.19	16	300	540	0.3	25	2	0.25	60	5000
13E0200	0.2	38	14	60	110	60	30	0.38	22	33	2500
13G0200	0.2	6.3	14	100	200	10	30	0.7	3	33	2500
13W0200	0.2	0.63	14	40	70	1	30	0.25	0.25	33	2500
13E0500	0.5	225	10	10	18	360	40	0.062	22	14	1000
13G0500	0.5	22	10	15	30	35	40	0.12	3	14	1000
13W0500	0.5	3.15	10	7	13	5	40	0.04	0.25	14	1000
13E1000	1	880	7	2.5	4.5	1400	60	0.016	22	7	500
13G1000	1	82	7	4	7	130	60	0.03	3	7	500
13W1000	1	19	7	4	7	30	60	0.02	0.25	7	500

罗氏线圈 SS-680系列

类型│罗氏线圈│AC专用│
允许电流│【SS-683, 684】120, 300Apk│【SS-685】600Apk│【SS-686, 687】1.2k, 3.0kApk│【SS-688】6kApk│【SS-689】12kApk│
电流灵敏度│【SS-683】10mV/A│【SS-684】5mV/A│【SS-685, 686】2m, 1mV/A│【SS-687】0.5mV/A│【SS-688, 689】0.2m, 0.1mV/A│
频率带宽│100MHz│
形状/用途│耐温型(-10℃～+70℃)│宽带型(100MHz)│馈通型(Φ14mm)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-10℃～ 70℃(含传感器部电缆)
耐电压：1.2kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-683	120	65Hz～100MHz	10	30	1.8	150	3.0
SS-684	300	32Hz～100MHz	5	85
SS-685	600	15Hz～100MHz	2	150
SS-686	1,200	8Hz～100MHz	1	90		90
SS-687	3,000	5Hz～50MHz	0.5	90
SS-688	6,000	3Hz～30MHz	0.2	90
SS-689	12,000	2Hz～30MHz	0.1	90

罗氏线圈 SS-280A系列

类型│罗氏线圈│AC专用│
允许电流│【SS-281A】30Apk│【SS-282A】60Apk│【SS-283A, 284A】120, 300Apk│【SS-285A】600Apk│【SS-286A, 287A】1.2k, 3.0kApk│【SS-288A】6kApk│【SS-289A, 280A】12k, 30kApk│
电流灵敏度【SS-281A, 282A】200m, 100mV/A│【SS-283A】50mV/A│【SS-284A, 285A】20m, 10mV/A│【SS-286A】5mV/A│【SS-287A, 288A】2m, 1mV/A│【SS-289A】0.5mV/A│【SS-280A】0.2mV/A│
频率带宽│30MHz│
形状/用途│耐温型(-40℃～+125℃)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～ 125℃(含传感器部电缆)
耐电压：1.2kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-281A	30	110Hz～30MHz	200	2	3.5	80	1.0
SS-282A	60	65Hz～30MHz	100	4	2.5		1.5
SS-283A	120	32Hz～30MHz	50	8	2
SS-284A	300	9Hz～30MHz	20	20	1.8
SS-285A	600	6Hz～30MHz	10	40
SS-286A	1,200	3Hz～30MHz	5	80/40		80/40	2
SS-287A	3,000	2Hz～30MHz	2		1.4
SS-288A	6,000	2Hz～30MHz	1
SS-289A	12,000	2Hz～30MHz	0.5
SS-280A	30,000	2Hz～30MHz	0.2

罗氏线圈 SS-280A-H系列

类型│罗氏线圈│AC专用│
允许电流│【SS-281A-H】30Apk│【SS-282AｰH】60Apk│【SS-283AｰH, 284AｰH】120, 300Apk│【SS-285A-H】600Apk│【SS-286AｰH, 287AｰH】1.2k, 3.0kApk│【SS-288AｰH】6kApk│【SS-289AｰH, 280AｰH】12k, 30kApk│
电流灵敏度│【SS-281AｰH, 282AｰH】200m, 100mV/A│【SS-283A-H】50mV/A│【SS-284A-H, 285A-H】20m, 10mV/A│【SS-286A-H】5mV/A│【SS-287A-H, 288A-H】2m, 1mV/A│【SS-289A-H】0.5mV/A│【SS-280A-H】0.2mV/A│
频率带宽│30MHz│
形状/用途│耐温型(-40℃～+150℃)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～150℃(含传感器部电缆)
耐电压：1.2kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-281A-H	30	110Hz～30MHz	200	2	3.5	80	1.0
SS-282A-H	60	65Hz～30MHz	100	4	2.5		1.5
SS-283A-H	120	32Hz～30MHz	50	8	2.0
SS-284A-H	300	9Hz～30MHz	20	20	1.8
SS-285A-H	600	6Hz～30MHz	10	40
SS-286A-H	1,200	3Hz～30MHz	5	80/40		80/40	2.0
SS-287A-H	3,000	2Hz～30MHz	2		1.4
SS-288A-H	6,000	2Hz～30MHz	1
SS-289A-H	12,000	2Hz～30MHz	0.5
SS-280A-H	30,000	2Hz～30MHz	0.2

可根据用户的规格自定义峰值电流、传感器线圈长度、电缆长度等。请务必联系我们。
SS-280A 为订制产品。

罗氏线圈 SS-660/660P系列

类型│罗氏线圈│AC专用│
允许电流│【SS-662, 662P】60Apk│【SS-663, 663P, 664, 664P】120, 300Apk│【SS-665, 665P】600Apk│【SS-266, 266P】1.2kApk│
电流灵敏度│【SS-662, 662P】100mV/│【SS-663, 663P】50mV/A│【SS-664, 664P, 665, 665P】20m, 10mV/A│【SS-666, 666P】5mV/A│
频率带宽│30MHz│
形状/用途│耐温型(-40℃～+125℃)│狭小型(传感器线圈直径：1mm)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～ 125℃(含传感器部电缆)
耐电压：600V peak

型号	峰值电流	最大峰值电压	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流	最大峰值电压	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-662	60A	600V	110Hz～30MHz	100	4	5.0	80	3.0
SS-662P	60A	1,200V	110Hz～30MHz	100	4	5.0
SS-663	120A	600V	65Hz～30MHz	50	8	3.5
SS-663P	120A	1,200V	65Hz～30MHz	50	8	3.5
SS-664	300A	600V	32Hz～30MHz	20	20	2.5
SS-664P	300A	1,200V	32Hz～30MHz	20	20	2.5
SS-665	600A	600V	17Hz～30MHz	10	40	2.0
SS-665P	600A	1,200V	17Hz～30MHz	10	40	2.0
SS-666	1,200A	600V	9Hz～30MHz	5	80	1.8
SS-666P	1,200A	1,200V	9Hz～30MHz	5	80	1.8

罗氏线圈 SS-620S系列

类型│罗氏线圈│AC专用│
允许电流│【SS-622S】60Apk│【SS-623S, 624S】120, 300Apk│【SS-625S】600Apk│【SS-626S, 627S】1.2k, 3.0kApk│【SS-628S】6kApk│【SS-629S, 630S】12k, 30kApk│
电流灵敏度│【SS-622S】100mV/A│【SS-623S】50mV/A│【SS-624S, 625S】20m, 10mV/A│【SS-626S】5mV/A│【SS-627S, 628S】2m, 1mV/A│【SS-629S】0.5mV/A│【SS-630S】0.2mV/A│
频率带宽│25MHz│
形状/用途│耐温型(-40℃～+125℃)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～ 125℃(含传感器部电缆)
耐电压：5kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-622S	60	25Hz～25MHz	100	4	5.0	80	3.0
SS-623S	120	10Hz～25MHz	50	8
SS-624S	300	4Hz～25MHz	20	20
SS-625S	600	2Hz～25MHz	10	40
SS-626S	1,200	1Hz～25MHz	5	80	3.5
SS-627S	3,000	0.8Hz～25MHz	2	80	2.0
SS-628S	6,000	0.6Hz～25MHz	1		1.4
SS-629S	12,000	0.4Hz～25MHz	0.5		1.2
SS-630S	30,000	0.2Hz～25MHz	0.2		1.1

罗氏线圈 SS-620M系列

类型│罗氏线圈│AC专用│
允许电流│【SS-622M】60Apk│【SS-623M, 624M】120, 300Apk│【SS-625M】600Apk│【SS-626M, 627M】1.2k, 3.0kApk│【SS-628M】6kApk│【SS-629M, 630M】12k, 30kApk│
电流灵敏度│【SS-622M】100mV/A│【SS-623M】50mV/A│【SS-624M, 625M】20m, 10mV/A│【SS-626M】5mV/A│【SS-627M, 628M】2m, 1mV/A│【SS-629M】0.5mV/A│【SS-630M】0.2mV/A│
频率带宽│20MHz│
形状/用途│耐温型(-40℃～+125℃)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～ 125℃(含传感器部电缆)
耐电压：5kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-622M	60	25Hz～20MHz	100	TBD	5.0	80	3.0
SS-623M	120	10Hz～20MHz	50	6
SS-624M	300	4Hz～20MHz	20	16
SS-625M	600	2Hz～20MHz	10	32
SS-626M	1,200	1Hz～20MHz	5	60	3.5
SS-627M	3,000	0.8Hz～20MHz	2	80	2.0
SS-628M	6,000	0.6Hz～20MHz	1		1.4
SS-629M	12,000	0.4Hz～20MHz	0.5		1.2
SS-630M	30,000	0.2Hz～20MHz	0.2		1.1

罗氏线圈 SS-290S系列

类型│罗氏线圈│AC专用│
允许电流│【SS-293S, 294S】1.2k, 3.0kApk│【SS-295S】6kApk│【SS-296S, 297S, 298S, 299S】12k, 30k, 60k, 120kApk│
电流灵敏度│【SS-293S】5mV/A│【SS-294S, 295S】2m, 1mV/A│【SS-296S】0.5mV/A│【SS-297S, 298S】0.2m, 0.1mV/A│【SS-299S】0.05mV/A│
频率带宽│20MHz│
形状/用途│耐温型(-40℃～+125℃)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～ 125℃(含传感器部电缆)
耐电压：10kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-293S	1,200	1Hz～20MHz	5	60	3.5	80	3.0
SS-294S	3,000	0.8Hz～20MHz	2	80	2
SS-295S	6,000	0.6Hz～20MHz	1		1.4
SS-296S	12,000	0.4Hz～20MHz	0.5		1.2
SS-297S	30,000	0.2Hz～20MHz	0.2		1
SS-298S	60,000	0.1Hz～20MHz	0.1
SS-299S	120,000	0.1Hz～20MHz	0.05

罗氏线圈 SS-290L系列

类型│罗氏线圈│AC专用│
允许电流│【SS-293L, 294L】1.2k, 3.0kApk│【SS-295L】6kApk│【SS-296L, 297L, 298L, 299L】12k, 30k, 60k, 120kApk│
电流灵敏度│【SS-293L】5mV/A│【SS-294L, 295L】2m, 1mV/A│【SS-296L】0.5mV/A│【SS-297L, 298L】0.2m, 0.1mV/A│【SS-299L】0.05mV/A│
频率带宽│10MHz│
形状/用途│耐温型(-40℃～+125℃)│大口径型(Φ220mm)│有源型(需要电源)(罗氏线圈)│
制造商│岩通制│

传感器部使用温度范围：-40℃～ 125℃(含传感器部电缆)
耐电压：10kV peak

型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	绝对最大di/dt
型号	峰值电流 [A]	频率带宽 [-3dB]	灵敏度 [mV/A]	峰值di/dt [kA/μs]	噪声 [mV rms]	Peak [kA/μs]	RMS [kA/μs]
SS-293L	1,200	1Hz～10MHz	5	32	3.5	80	3.0
SS-294L	3,000	0.8Hz～10MHz	2	80	2
SS-295L	6,000	0.6Hz～10MHz	1		1.4
SS-296L	12,000	0.4Hz～10MHz	0.5		1.2
SS-297L	30,000	0.2Hz～10MHz	0.2		1
SS-298L	60,000	0.1Hz～10MHz	0.1
SS-299L	120,000	0.1Hz～10MHz	0.05

量程切换/钳式探头(霍尔元件) SS-530系列 (DC+AC)

类型│霍尔元件│DC～│
允许电流│【SS-531, 532】0.5Arms│【SS-530, 531】5,30Arms│
电流灵敏度│【SS-530, 531】1, 10V/A│【SS-530, 531】100mV/A│
频率带宽│【SS-530】50MHz│
形状/用途│宽带型(【SS-531】120MHz)│钳式(【SS-530, 531】Φ5mm)│
制造商│岩通制│

形状	型号	允许输入电流	频率带宽	测量导体直径	确率
	SS-530	0.5A/5A/30A	DC ～ 50MHz （-3db）	φ5mm以下	Typical ± 1.0%rdg. ± 1 mV (30 A range /5 Arange)
	SS-531	0.5A/5A/30A	DC ～ 120MHz （-3db）	φ5mm以下	Typical ± 1.0%rdg. ± 1 mV (30 A range /5 Arange)

1 2 Next »
